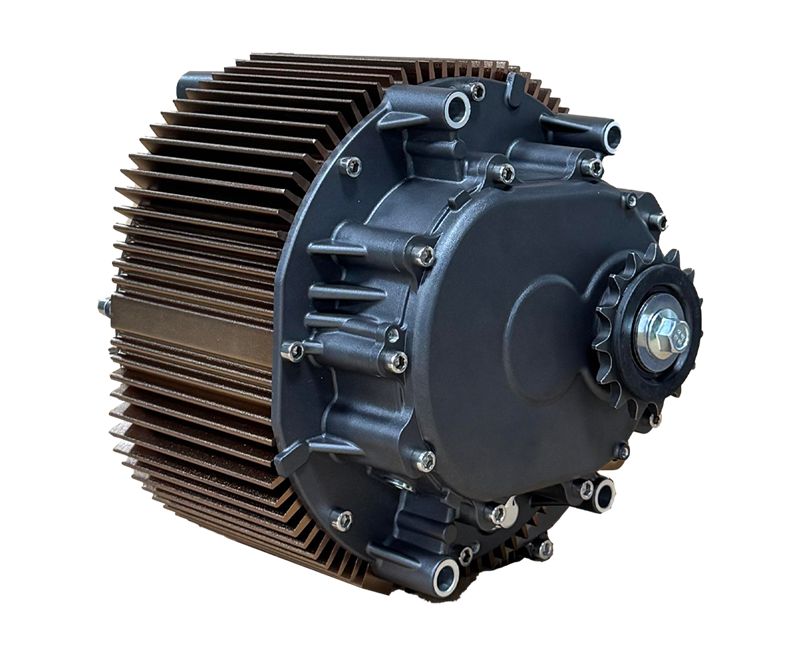

205 mid-mounted motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Wide speed range, powerful start, linear and smooth acceleration

The mid-mounted layout optimizes the center of gravity and provides quick control response.

IP67 sealed whole machine, dustproof and waterproof, no need to worry about rainy and muddy days

The stator uses 35W300 high-magnetic silicon steel sheets with low iron loss and high electromagnetic efficiency.

Technical parameters
Size 205 stator
Working voltage 320V
Rated power 23kW
Peak power 40kW
Rated speed 3500rpm
Peak torque 532N·m
Maximum efficiency 90%
Insulation level H
Sensor type Resolver
Reduction ratio 2.136
maximum speed 160km/h
