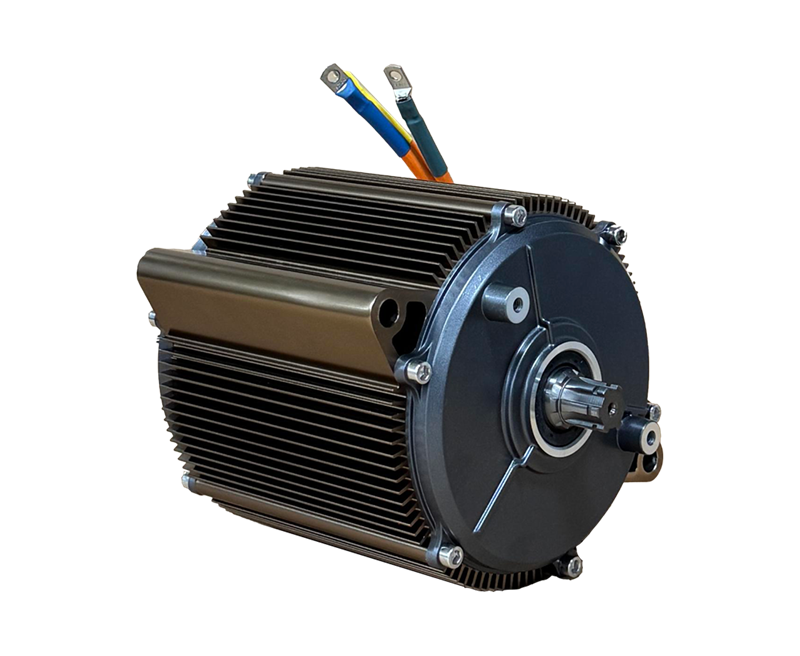

145 mid-mounted motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

The mid-mounted layout is close to the center of gravity, with direct power transmission and agile control response.

Magnetic braided sensor, high position detection accuracy and stable operation

Rectangular copper flat wires are tightly wound, with high slot filling rate, good heat dissipation and high power density.

Widely used in scenarios with high requirements on power, efficiency and reliability

Technical parameters
Size 145 stator
Working voltage 72V
Rated power 5500-6500W
Peak power 11000-13000W
Rated speed 3000-3500rpm
Peak torque 320N·m
Maximum efficiency 90%
Insulation level H
Sensor type Magnetoelectric encoder
Reduction ratio 4.67
maximum speed 100-120km/h
