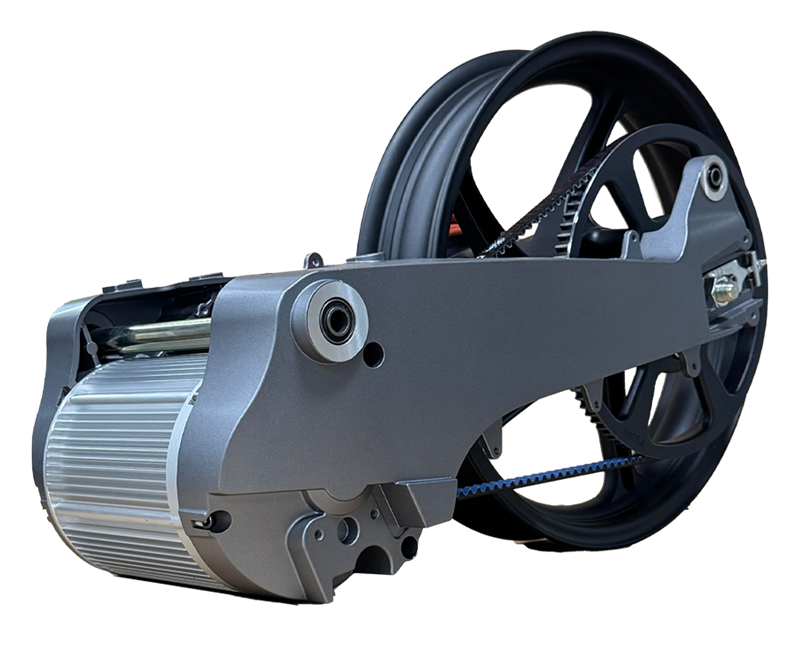

126 mid-mounted motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

The best choice for mid- to high-end electric motorcycles, with excellent efficiency, torque and reliability.

Abundant power, high energy conversion efficiency, and better battery life

Climbing ability ≥15°, easy to conquer complex off-road terrain

Low center of gravity, balanced front and rear weights, excellent control stability and passability

High magnetic permeability and low loss silicon steel sheet greatly improves electromagnetic efficiency

Technical parameters
Size 126 stator
Working voltage 72V
Rated power 2500-3000W
Peak power 5500-6000W
Rated speed 2300-2800rpm
Peak torque 180N·m
Maximum efficiency 90%
Insulation level H
Sensor type Magnetoelectric encoder
Reduction ratio 4
maximum speed 80-100km/h
