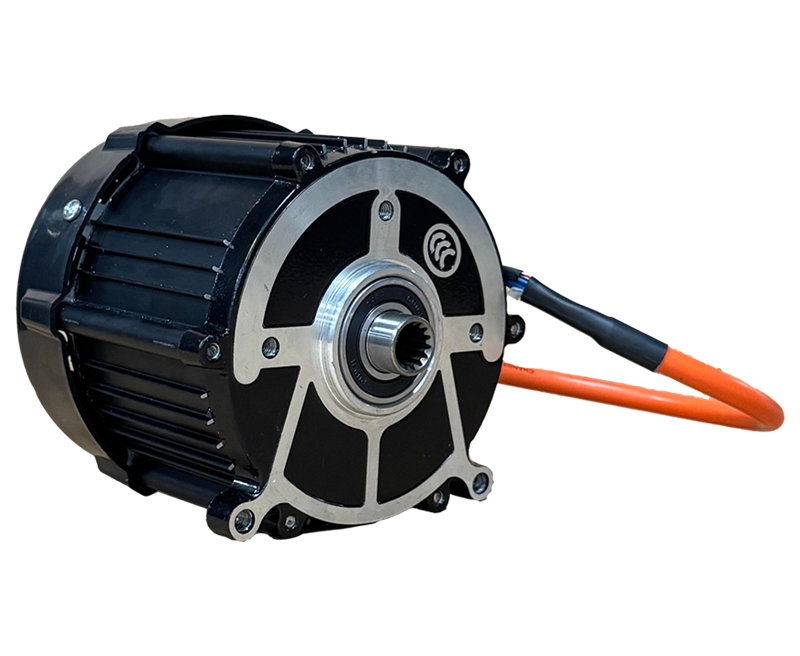

120 mid-mounted motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

High efficiency, high torque and high reliability in one

High energy conversion efficiency and better battery life

Wide speed range, smooth start, quick acceleration response

The mid-mounted layout lowers the center of gravity, giving the vehicle excellent balance and making riding with a load more stable.

IP67 fully enclosed design, dustproof and waterproof, capable of handling complex environments with ease

Technical parameters
Size 120 stator
Working voltage 48V/60V/72V
Rated power 500~1500W
Peak power 1200~3000W
Rated speed 2500~4000rpm
Peak torque 12~30N·m
Maximum efficiency 88%
Insulation level H
Sensor type Hall/Magnetic Encoder
Reduction ratio 8.12
maximum speed 38~50km/h
