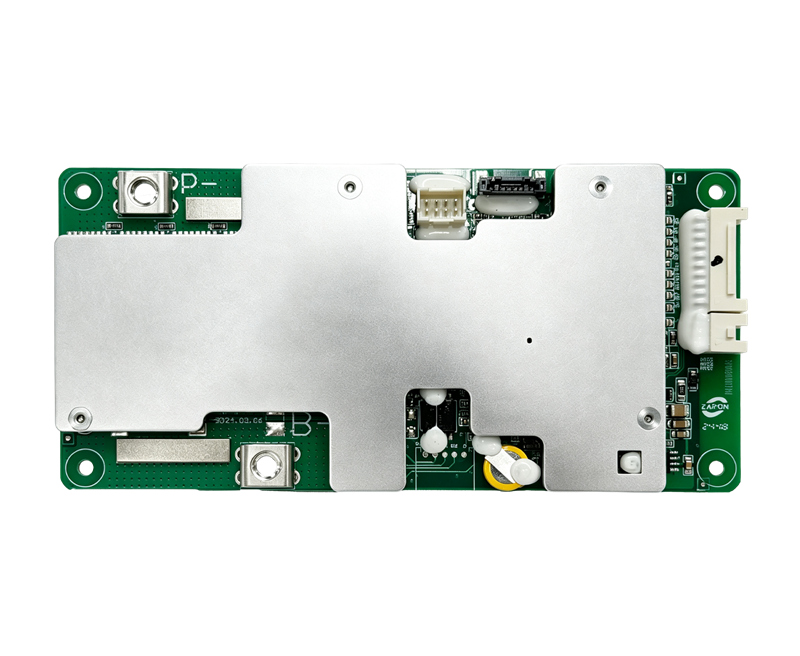

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Supports 10-17 strings of ternary lithium, sodium ion, iron lithium and other battery cells
Supports continuous charge and discharge current 80A (>30min)
Voltage sampling accuracy ≤±5mV
Supports CAN, RS485, One Line Communication, Bluetooth communication, and also supports IOT
Support parallel use
| Support string number | 10-17 |
| Rated voltage | 48V/60V |
| Rated discharge current | 80A |
| Peak discharge current | 160A |
| Communication method | CAN/RS485/One Line Communication/Bluetooth |
| Interface mode | Same port for charging and discharging |
| special features | Parallel/IoT/Bluetooth |
| size | 140*70*12mm |
