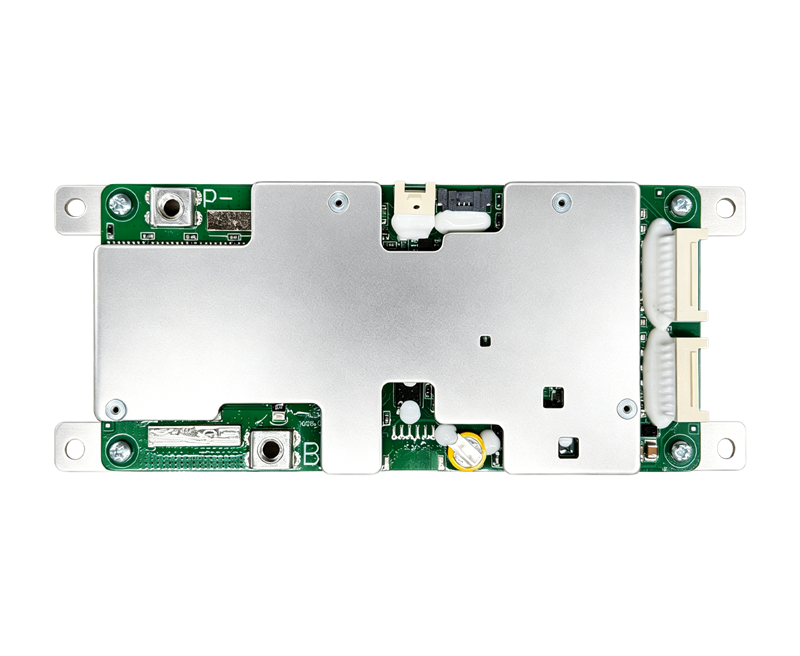

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Can support up to 24 strings of various battery cells such as ternary lithium, sodium ion, iron lithium, etc.
Supports continuous charge and discharge current 80A (>30min)
High-precision voltage acquisition, accuracy ≤±5mV
Supports CAN/RS485/one line three communication, fully integrated charging and discharging management and fault diagnosis
Supports BLE/parallel function to fully meet the diverse use needs of electric tricycles
| Support string number | 10-24 |
| Rated voltage | 48V/60V/72V |
| Rated discharge current | 80A |
| Peak discharge current | 160A |
| Communication method | CAN+RS485+Line 1/Bluetooth |
| Interface mode | Same port for charging and discharging |
| special features | Parallel/IoT/Bluetooth |
| size | 150*70*15mm |
