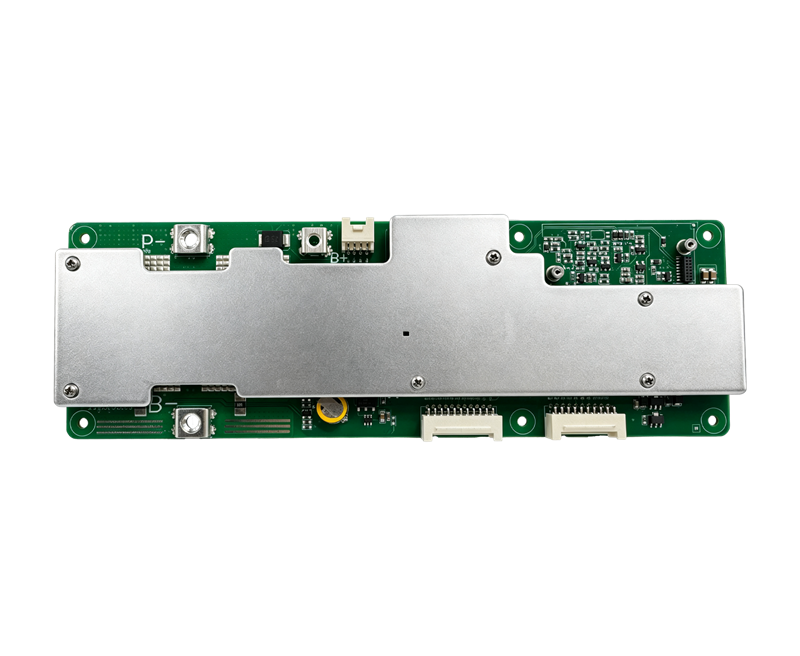

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Supports 20-32 strings of ternary lithium, sodium ion, iron lithium and other battery cells
Supports continuous charge and discharge current 60A (>30min)
Support CAN, RS485 communication, can come with IOT module
Support parallel applications
| Support string number | 20-32 |
| Rated voltage | 72V/96V |
| Rated discharge current | 60A |
| Peak discharge current | 120A |
| Communication method | CAN+RS485+One line communication |
| Interface mode | Same port for charging and discharging |
| special features | Parallel/IoT |
| size | 210*70*16mm |
