Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
The single board supports 13 strings of various battery cells such as ternary lithium, sodium ion, and iron lithium.

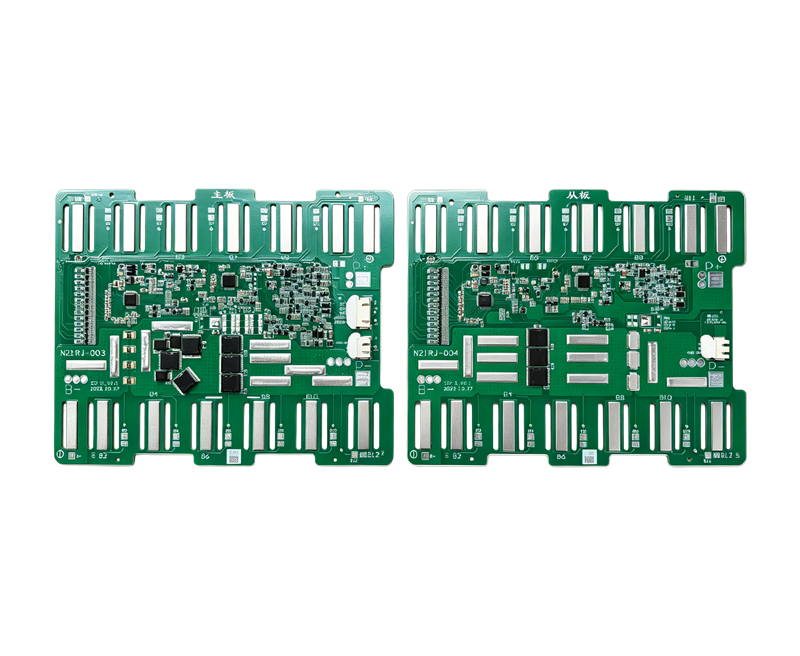

Specially designed for 2 battery packs connected in series. One-line communication is used between the series connected packs.
Support 2-way and 1-line external communication
Voltage sampling accuracy ≤±5mV
Low power consumption design, operating power consumption
| Support string number | 13 or 26 |
| Rated voltage | 48V/72V |
| Rated discharge current | 40A |
| Peak discharge current | 80A |
| Communication method | One line |
| Interface mode | Same port for charging and discharging |
| special features | Master-slave board series connection |
| size | 195*155*5mm |
