Tricycle solution
controller
  • model
    H280
  • Dimensions (mm)
    180*100.5*51.5
  • Rated working voltage (V)
    72
  • Input current (A)
    80
  • Phase current (A)
    240
  • Peak power (kW)
    5
  • Speed(km/h)
    50~80
  • Communication method
    One-line communication, UART, RS485, CAN
  • Protection level
    IP67
controller
motor
model
120 mid-mounted motor (assembly)
Dimensions (mm)
120 stator
Working voltage (V)
72
Rated power (kW)
1
Rated speed (rpm)
4500
Peak power (kW)
3.9
Peak torque (N.m)
29
Maximum efficiency
90
Insulation level
H
Sensor type
Magnetic braiding
Motor reduction ratio
8.12
Maximum speed (km/h)
50
motor
BMS
  • model
    LBMS-RL
  • Dimensions (mm)
    150*70*15
  • Support string number
    twenty four
  • Rated voltage (V)
    72
  • Rated discharge current (A)
    80
  • Peak discharge current (A)
    160
  • Communication method
    CAN+RS485+One line communication
  • Interface mode
    Same port for charging and discharging
  • special features
    BLE/Parallel
BMS

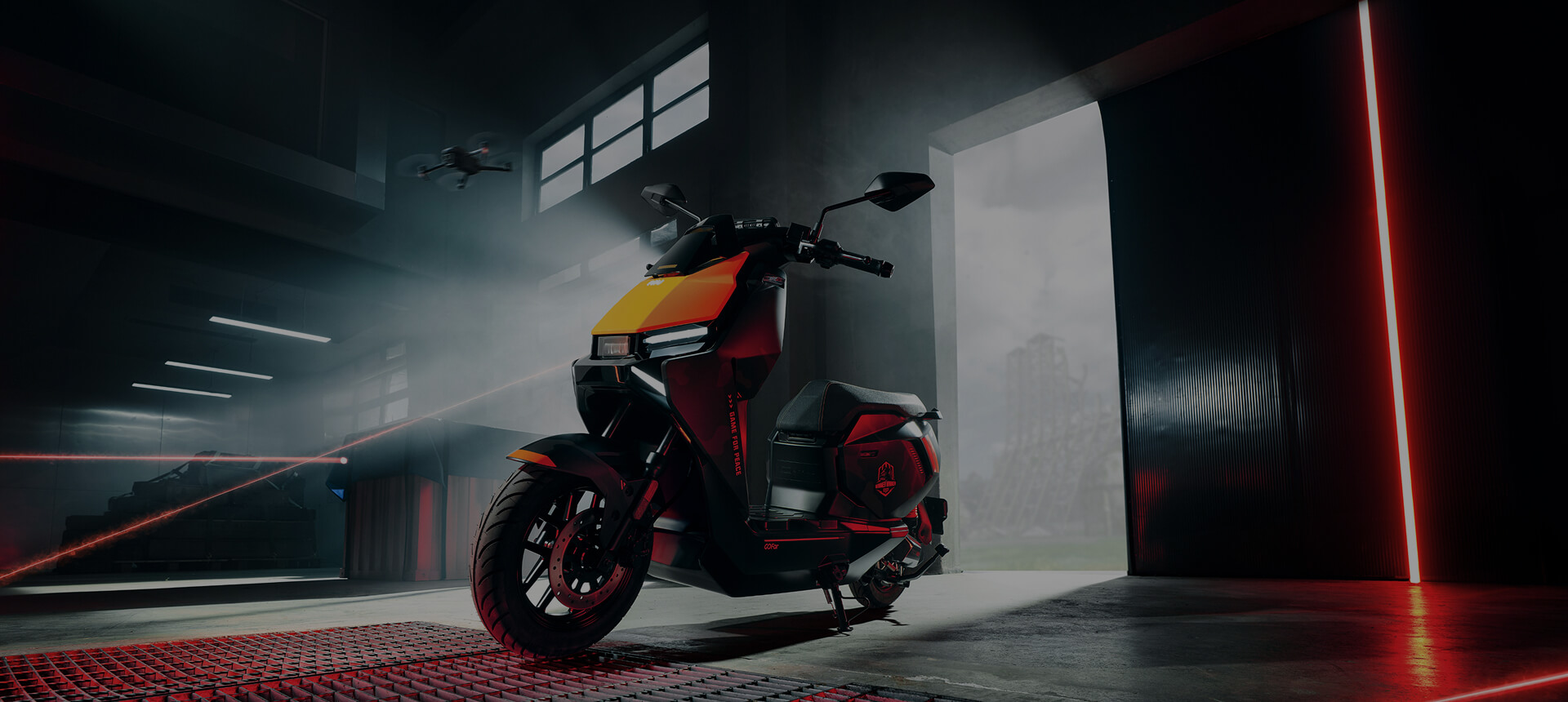

Full of motivation
50km/h
maximum speed
≥15°
Climbing ability
8.12
Reduction ratio
strong
wheel end torque
Full of motivation

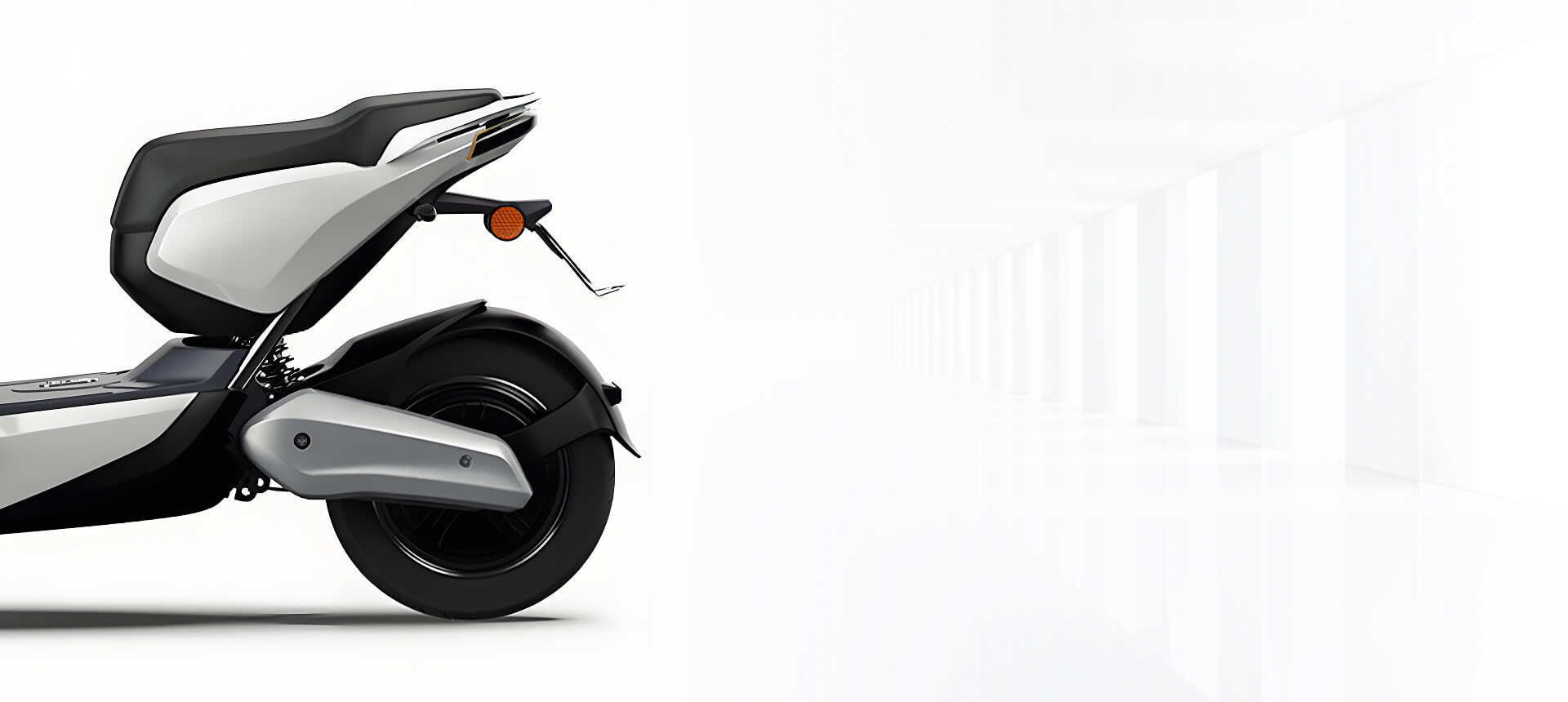

energy recovery
    • Reduction ratio 8.12, strong wheel end torque
    • Rated speed 4500rpm, wide speed range
    • Motor efficiency is 90% and flat wire has low copper loss
    • Support CAN/RS485/One Line Communication/Bluetooth FOC control, support cruise and recovery - high efficiency and energy saving
    • Flat wire winding, high slot fill rate and low copper loss - excellent efficiency
    • Peak torque 29N·m, climbing ≥15°——load climbing
    • IP67 protection, adaptable to complex working conditions - stable and reliable
energy recovery
security control
FOC magnetic coding precise feedback
High efficiency and energy saving
Flat wire efficiency reaches 90%
Excellent efficiency
29N·m climbing ≥15°
Climbing with load
IP67 system stable
Stable and reliable
security control

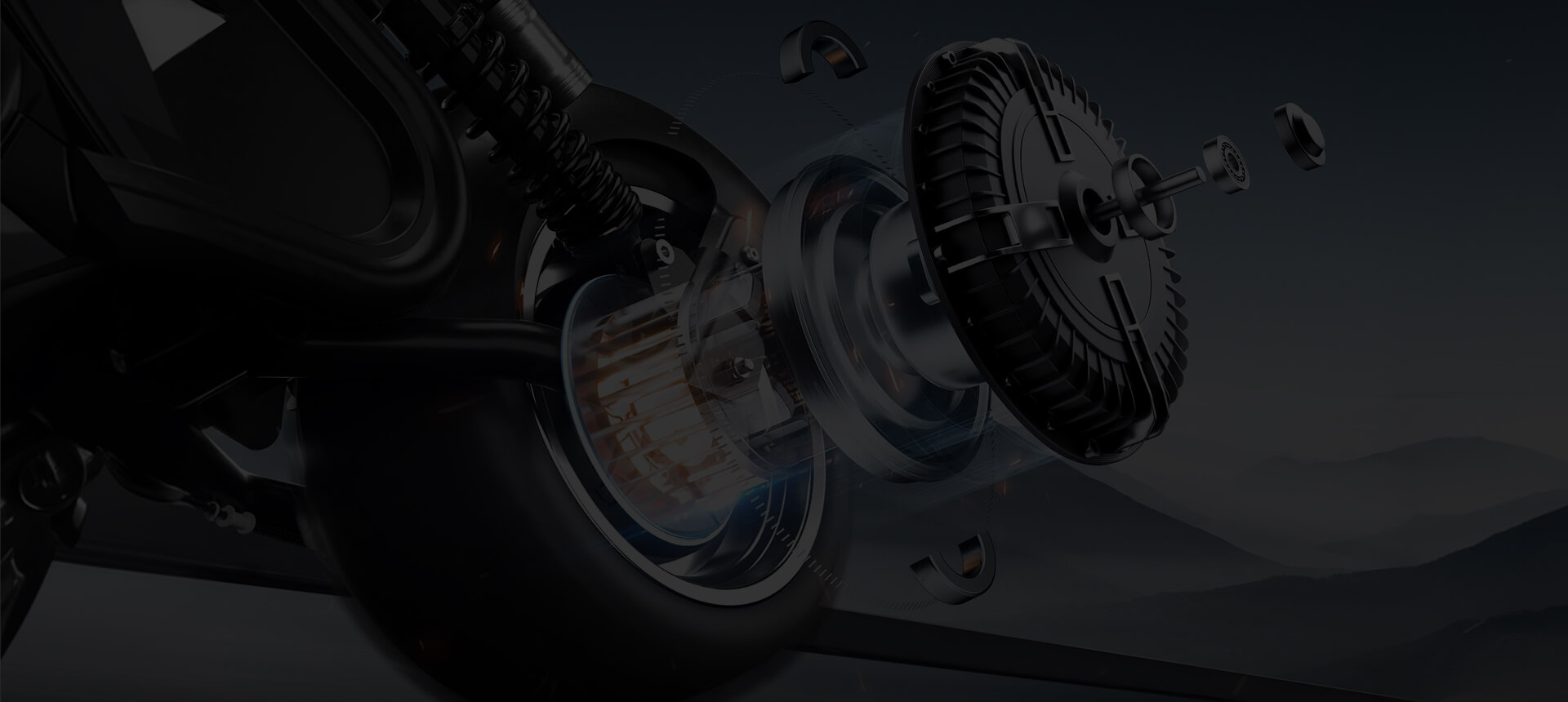

Extreme precision
Flat wire winding technology
Heat dissipation suppresses temperature rise
Magnetic sensor integration
Anti-vibration and anti-dust
High magnetic permeability and low loss silicon steel sheet
Iron loss reduction
Support Bluetooth communication and IOT function
Support Bluetooth communication and IOT function
Intelligent Internet
Extreme precision
