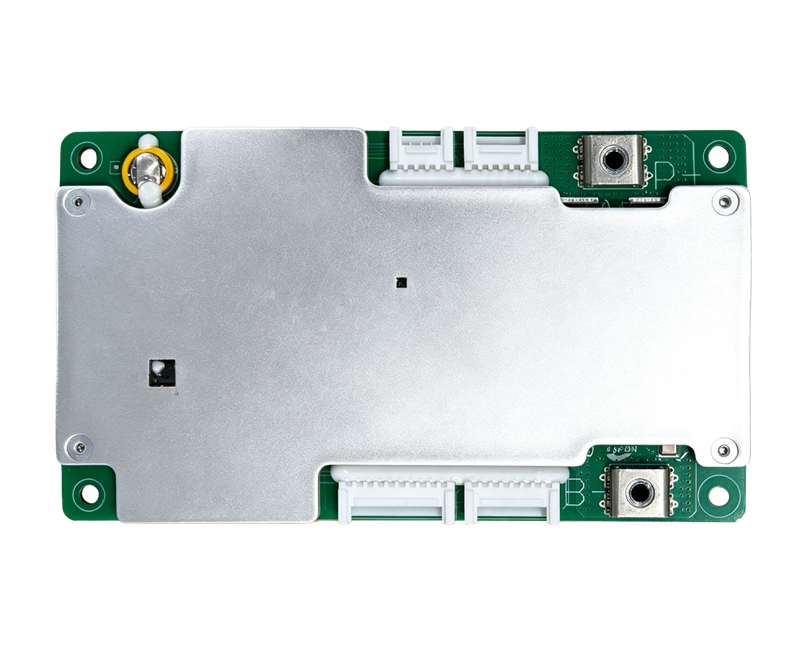

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Supports 10-16 string voltage sampling
Supports continuous charge and discharge current 50A (>30min)
Voltage sampling accuracy ≤±5mV
Support 2-way and 1-line communication
Low power consumption design, operating power consumption
Comply with GB42295, GB17761 certification requirements
| Support string number | 13-16 |
| Rated voltage | 48V |
| Rated discharge current | 40A |
| Peak discharge current | 90A |
| Communication method | RS485/Lineline |
| Interface mode | Same port for charging and discharging |
| special features | New national standard |
| size | 130*74*10mm |
