Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.

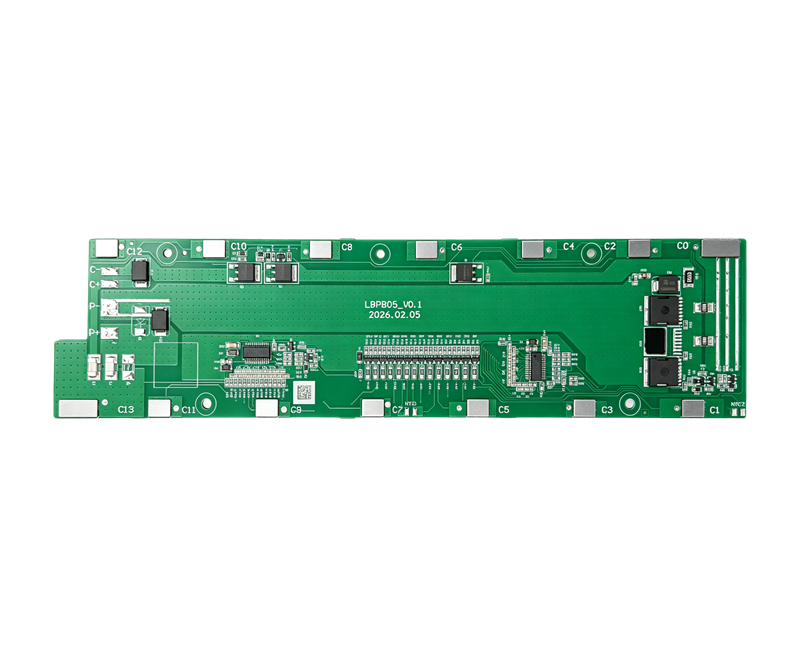

Pure hardware protection board, supports 13 strings of ternary lithium batteries, specially designed for 48V scooter lithium battery packs
Support continuous discharge current 20A (>30min), 30A (>10min)
Different charging and discharging port design
No discharge is allowed during charging, safer
With multiple charging protections, charging is more secure
Comply with UL2271-2018 certification requirements
| Support string number | 13 |
| Rated voltage | 48V |
| Rated discharge current | 30A |
| Peak discharge current | 50A |
| Communication method | / |
| Interface mode | Charge and discharge outlet |
| special features | Scooter (UL certified) |
| size | 249*62*6mm |
