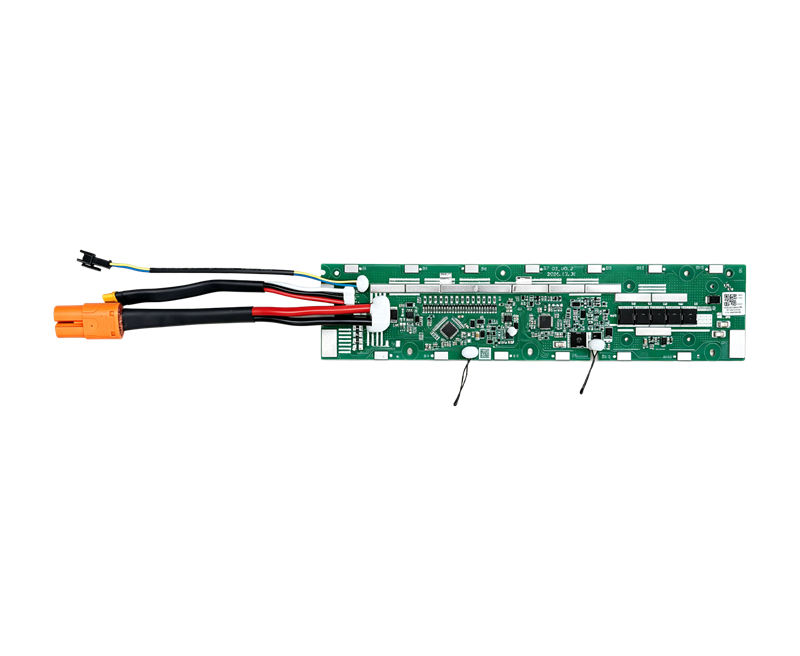

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Supports 14 strings of ternary lithium, sodium ion, iron lithium and other battery cells, suitable for scooter batteries
Supports charging and discharging with a maximum current of 60A,
Support 485 and One-line communication
Different charging and discharging port design
No discharge is allowed during charging, safer
With multiple charging protections, charging is more secure
| Support string number | 13 |
| Rated voltage | 48V |
| Rated discharge current | 40A |
| Peak discharge current | 90A |
| Communication method | RS485/Lineline |
| Interface mode | Charge and discharge port |
| special features | Scooter (UL) |
| size | 279.5*62*7mm |
