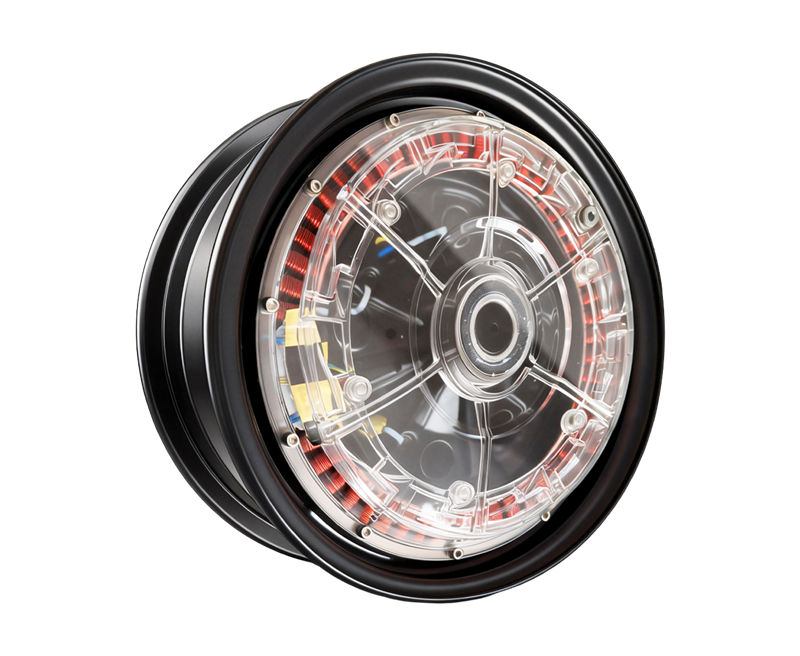

Oil-cooled motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Super high tank full rate, strong and abundant power

Internal oil cooling technology, leading in heat dissipation performance, continuous output and service life

Special heat-conducting insulating oil circulates, directly contacting the stator winding for active heat conduction

Support long-term full-load operation without slowing down and avoid overheating protection

Double-layer oil seal + O-ring sealing structure ensures long-term operation without leakage

Technical parameters
Size 12 inches
Working voltage 60-96V
Rated power 1000-2500W
Peak power 2000-3600W
Rated speed 530-820rpm
Peak torque 100-200N·m
Maximum efficiency 85%
Insulation level H
Sensor type Hall
Reduction ratio 1
maximum speed 40-60km/h
