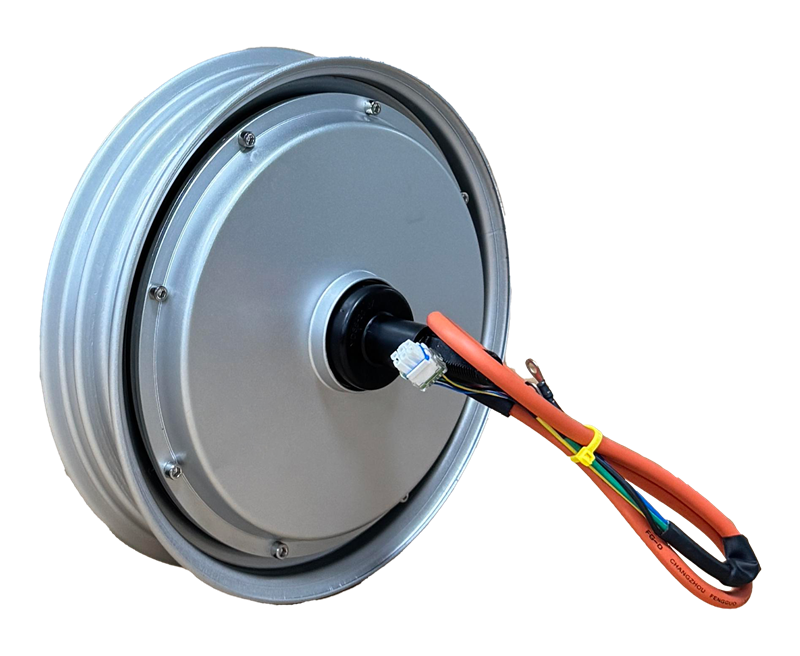

New national standard motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

The rated power is accurate ≤400W, and the maximum speed is strictly limited to ensure it is legal on the road.

The efficiency curve is flat and broad, and the efficiency in the medium and low speed range is ≥85%

Improved insulation materials and grease, still smooth starting at -20℃ low temperature

Comprehensively meet the new national standard testing requirements in various places and eliminate compliance risks

The same battery lasts longer, generates less heat, and has a design life of more than five years.

Technical parameters
Size 10 inches
Working voltage 48V
Rated power 400W
Peak power 1000W
Rated speed 330rpm
Peak torque 50N·m
Maximum efficiency 83%
Insulation level H
Sensor type Hall
Reduction ratio 1
maximum speed 25km/h
