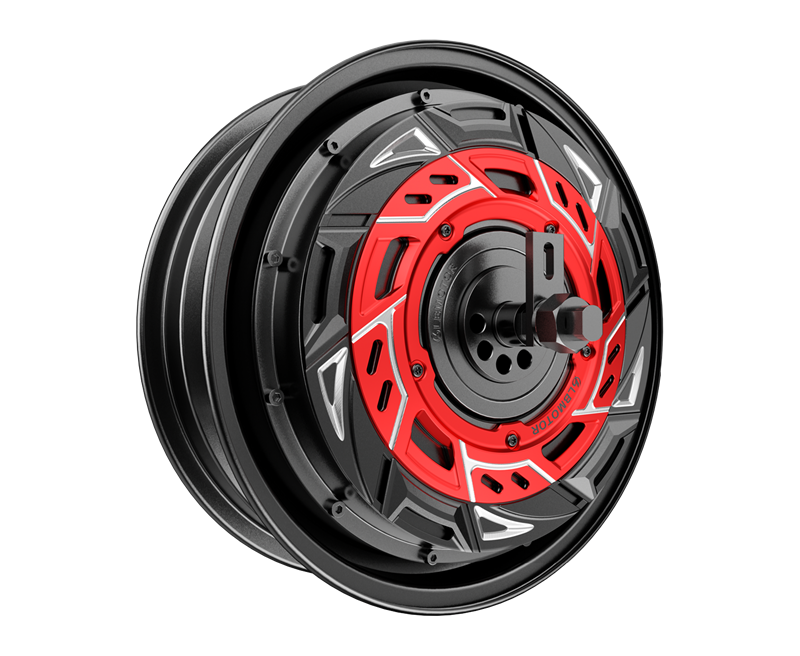

Tile Motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product Advantages

Quick acceleration response, super large slot design in the iron core, and significantly increased slot area

High-strength aluminum alloy bracket effectively alleviates heat accumulation

Dual NTC high-precision temperature control sensors, real-time monitoring of winding temperature, intelligent protection

Dual position sensors back up each other, doubling reliability

Multi-lip rubber plug for lead wire + double exhaust valve design, IP67 protection level

Technical Parameters
Size 12 inches
Working voltage 60/72V
Rated power 2000-10000W
Peak power 6000-30000W
Rated speed 1000-1600rpm
Peak torque 180-380N·m
Maximum efficiency 88%
Insulation level H
Sensor type Hall
Reduction ratio 1
maximum speed 100-170km/h
