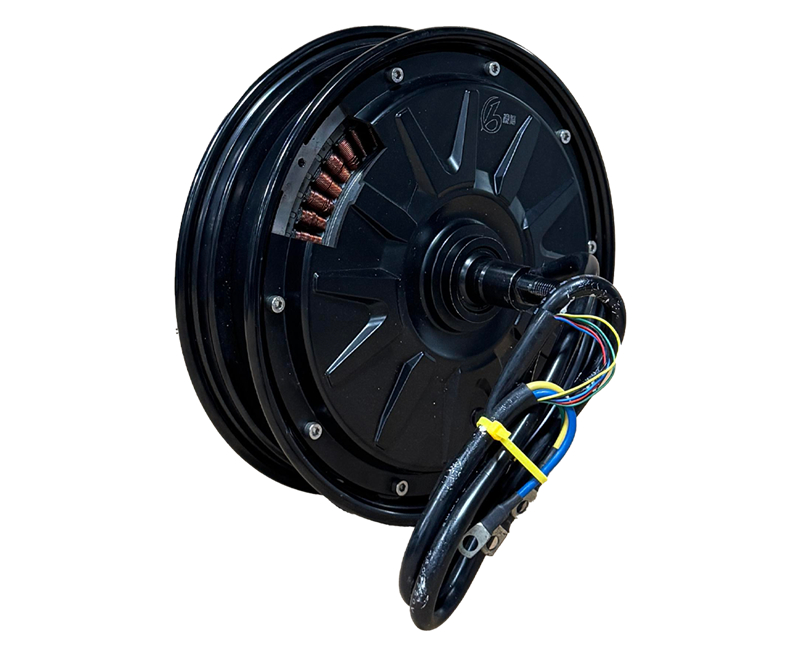

Tangential motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Small inductance, short time constant, extremely fast current response, suitable for high-frequency vector control

Excellent field weakening speed expansion capability, the maximum speed can reach 10000rpm+

Smooth operation, extremely low vibration and noise

Excellent throttle followability, full of fun to drive

Suitable for high-end electric motorcycles and high-performance scooters that require maximum speed

Technical parameters
Size 10 inches
Working voltage 60V/72V
Rated power 1000-2000W
Peak power 1.8-3.5kW
Rated speed 500-770rpm
Peak torque 90-180N·m
Maximum efficiency 88%
Insulation level H
Sensor type Hall/Magnetic Encoder
Reduction ratio 1
maximum speed 37-58km/h
