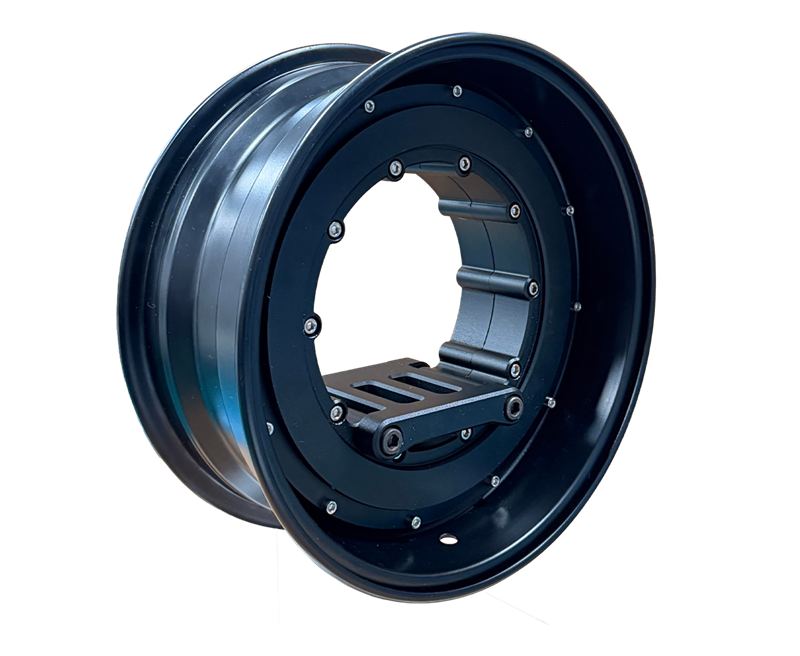

Road wheel motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

The iron-core design completely eliminates iron loss and provides excellent battery life.

Hall/magnetic dual sensor solution, strong compatibility

Small rotor inertia, extremely fast response, sensitive acceleration and deceleration, and excellent control feeling

The whole machine is IP67 sealed, dustproof and waterproof, suitable for rainy and muddy environments.

Technical parameters
Size 12 inches
Working voltage 72V
Rated power 5000W
Peak power 15000W
Rated speed 1200rpm
Peak torque 280N·m
Maximum efficiency 92%
Insulation level H
Sensor type Hall/Magnetic Encoder
Reduction ratio 1
maximum speed 120km/h
Application scenarios
Trendy players
Trendy players
 Urban commuting
Urban commuting
Leisure and entertainment
Leisure and entertainment
 Weekend trips
Weekend trips
Professional logistics
Professional logistics
Cargo transportation
Cargo transportation
Tourism
Tourism
Agricultural operations
Agricultural operations
Special scenes
Special scenes
