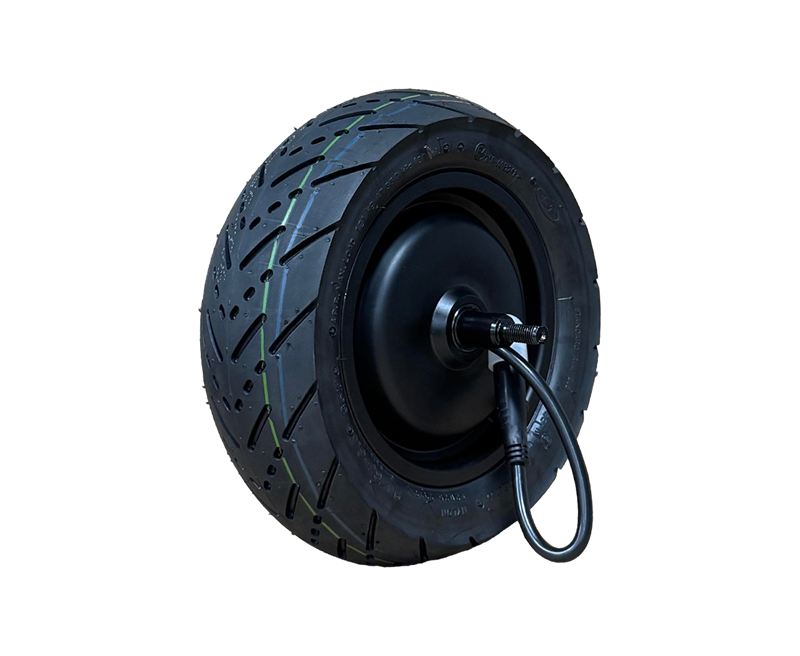

Scooter Motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product Advantages

High-performance NdFeB magnets combined with optimized windings produce large torque in a small size.

The rotor's inclined pole design completely eliminates the crawling feeling at low speeds and makes the start smooth and silky.

Specifically tailored for 8.5-10-inch mainstream wheels, easy to install

Light weight without sacrificing performance, providing a push-back feel comparable to that of a large tram

Completely say goodbye to "ta-da" noises and improve the quality of urban commuting

Technical Parameters
Size 6.0 inch/6.5 inch
Working voltage 36~60V
Rated power 200~1200W
Peak power 500~2000W
Rated speed 470~1600rpm
Peak torque 15~55N·m
Maximum efficiency 83%
Insulation level F/H
Sensor type Hall
Reduction ratio 1
maximum speed 30~80km/h
Application Scenarios
Trendy Players
Trendy Players
 Urban commuting
Urban commuting
Leisure and entertainment
Leisure and entertainment
 Weekend trips
Weekend trips
Professional logistics
Professional logistics
Cargo transportation
Cargo transportation
Tourism
Tourism
Agricultural operations
Agricultural operations
Special scenes
Special scenes
