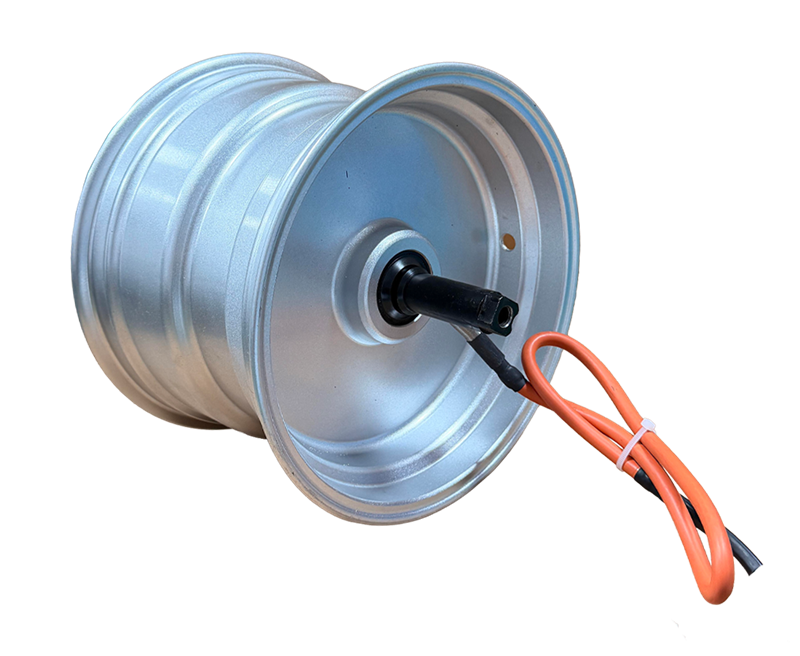

Harley Motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product Advantages

High-density winding design, powerful power

The direct drive structure has no gear loss and the power transmission is direct and efficient.

Hall sensor, accurate position detection, reliable operation

The retro appearance is suitable for the mid-to-high-end electric motorcycle market and is highly recognizable.

High magnetic permeability and low loss silicon steel sheet further improves electromagnetic efficiency

Technical Parameters
Size 10 inches
Working voltage 60V
Rated power 1500W
Peak power 2300W
Rated speed 600rpm
Peak torque 125N·m
Maximum efficiency 85%
Insulation level H
Sensor type Hall
Reduction ratio 1
maximum speed 45km/h
Application Scenarios
Trendy Players
Trendy Players
City Commuting
City Commuting
 Leisure and entertainment
Leisure and entertainment
 Weekend travel
Weekend travel
 Professional logistics
Professional logistics
 Cargo transportation
Cargo transportation
 Travel and sightseeing
Travel and sightseeing
 Agricultural operations
Agricultural operations
 Special scenes
Special scenes
