Dianzi Motor

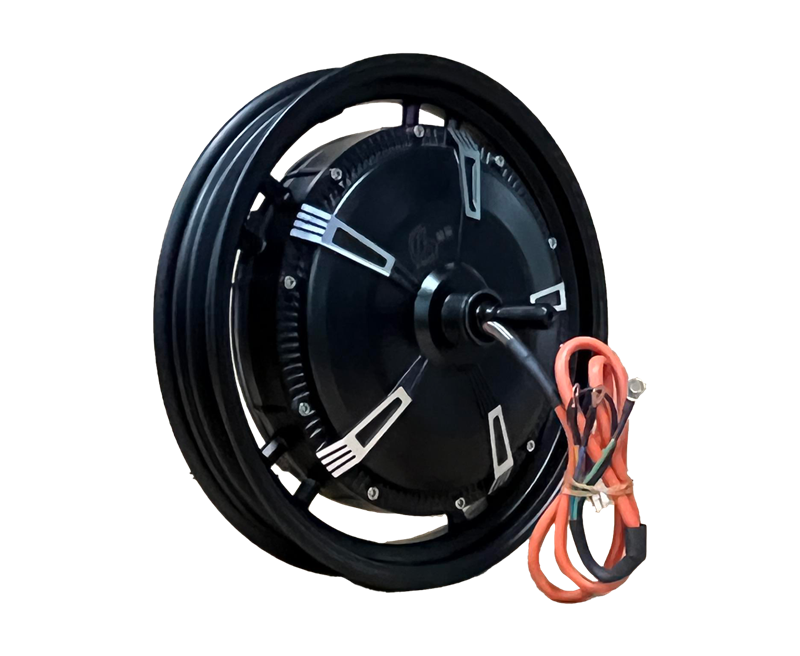

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product Advantages

Plenty of power for manned hill climbing, and controllable temperature rise during continuous riding in high temperatures

Lightweight hollow iron wheel with thickened and reinforced end cap structure

The outer casing is coated with weather-resistant paint, which resists mud and water erosion and is not prone to paint peeling or rusting after long-term outdoor use.

Comprehensive strengthening of structural strength, dual improvement of reliability and durability

Technical Parameters
Size 12 inches
Working voltage 48-60V
Rated power 350-1000W
Peak power 600-2000W
Rated speed 280-660rpm
Peak torque 50-120N·m
Maximum efficiency 85%
Insulation level H
Sensor type Hall
Reduction ratio 1
maximum speed 24-58km/h
