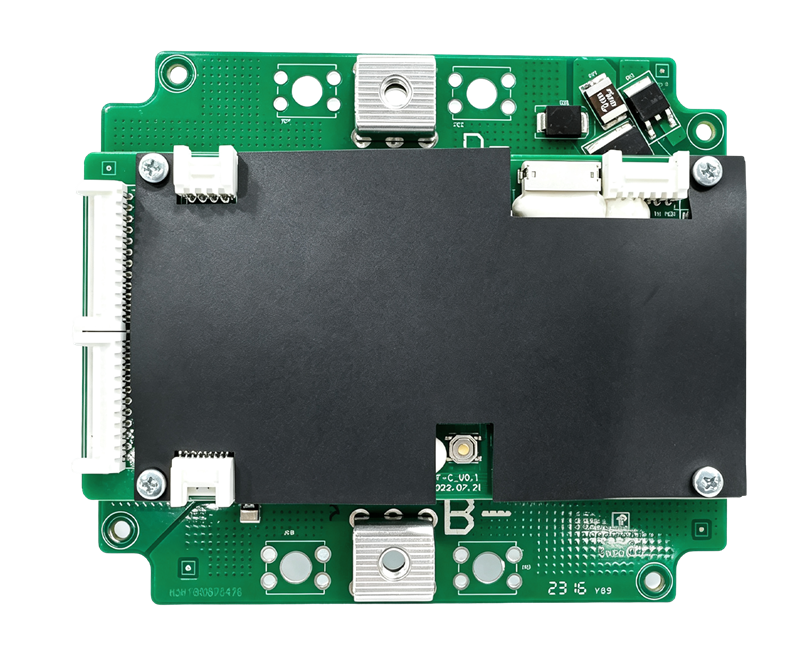

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Compatible with up to 24 strings of power cells
Ultra-low internal resistance TOLL package MOS, larger current and lower temperature rise
The control loop and the power loop are physically separated to isolate interference and make the operation more stable.
Supports PACK level parallel connection and can pass UL2271/UL2850 certification
| Support string number | 16-24 |
| Rated voltage | 60V/72V |
| Rated discharge current | 150A |
| Peak discharge current | 300A |
| Communication method | RS485/CAN |
| Interface mode | Same port for charging and discharging |
| special features | Parallel NoTUL certification |
| size | 120*105*26mm |
