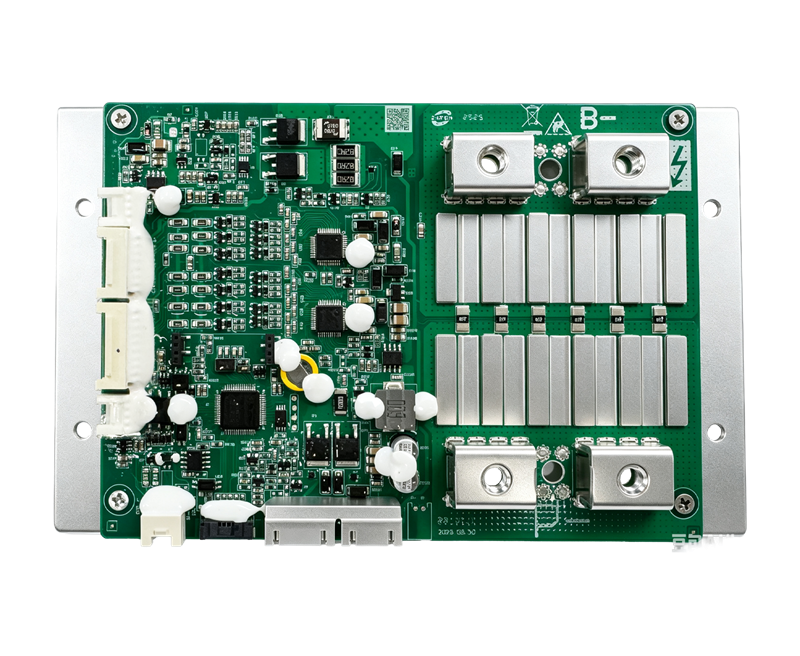

Lingbo Electronics BMS is oriented to multi-chemical systems such as lithium battery/sodium battery, covering the 48V–96V full voltage platform, and has high-precision SOC/SOH estimation, cell balancing, full-dimensional safety protection and intelligent thermal management functions. It can be deeply linked with the controller and the cloud to achieve battery life-cycle safety and energy efficiency management.
Can support up to 29 series of power cells, with a wide range of adaptability
It has 2 independent relay control interfaces and 1 auxiliary power supply, which can be adapted to various scenarios.
Ultra-large current carrying capacity, widened current substrate + copper strip surface mount loop technology
Standard pre-charging function to eliminate power-on shock and eliminate the risk of sparking
Optional high and low voltage isolation system to enhance electrical safety at the hardware level
| Support string number | 10-26 |
| Rated voltage | 48V/60V/72V |
| Rated discharge current | 250A |
| Peak discharge current | 500A |
| Communication method | RS485/CAN |
| Interface mode | Same port for charging and discharging |
| special features | 2-way relay control |
| size | 155*115*17mm |
