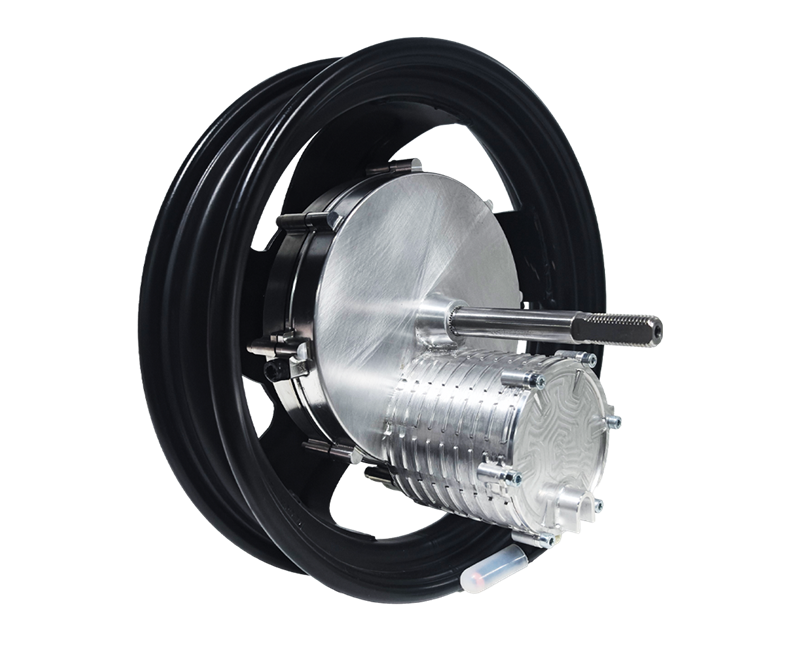

82 wheel core motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Direct drive responds quickly, starts powerfully, and accelerates smoothly

Epoxy resin vacuum potting, insulation and moisture-proof, greatly improved sealing and durability

The glue layer efficiently conducts winding heat, reduces temperature rise, and suppresses vibration.

Tile type magnet structure, uniform magnetic field and low eddy current loss

IP67 sealed whole machine, adaptable to harsh environments such as rainy days and muddy weather

Technical parameters
size 82 stator
Working voltage 48V
Rated power 500-600W
Peak power 1000-1200W
Rated speed 330-480rpm
Peak torque 50-60N·m
Maximum efficiency 85%
Insulation level H
Sensor type Magnetoelectric encoder
Reduction ratio 7.9
maximum speed 25-35km/h
