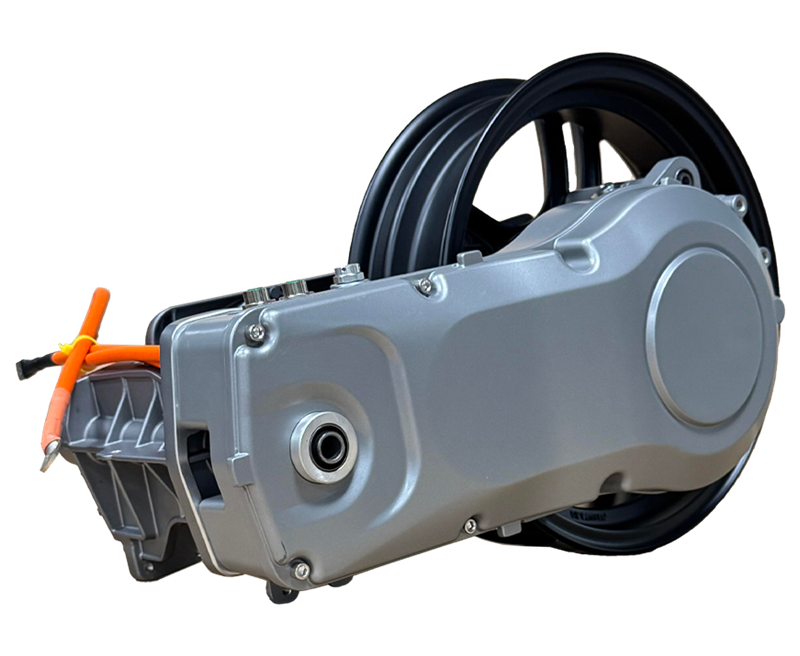

180 side-mounted motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Traditional round wire winding, mature technology and high reliability

Smooth and comfortable operation, suitable for urban commuting and load-carrying scenarios

Eddy current sensor, accurate and reliable position detection

High structural strength, excellent dynamic balance, strong accessories versatility, and low maintenance costs

High magnetic permeability and low loss silicon steel sheet, electromagnetic efficiency continues to be optimized

Technical parameters
Size 180 stator
Working voltage 72V
Rated power 5500~6500W
Peak power 11~13kW
Rated speed 980/1180rpm
Peak torque 238/260N·m
Maximum efficiency 88%
Insulation level H
Sensor type Magnetoelectric encoder
Reduction ratio 8.41
maximum speed 100~120km/h
Application scenarios
Trendy players
Trendy players
City commuting
City commuting
Leisure and entertainment
Leisure and entertainment
 Weekend trips
Weekend trips
Professional logistics
Professional logistics
Cargo transportation
Cargo transportation
Tourism
Tourism
Agricultural operations
Agricultural operations
Special scenes
Special scenes
