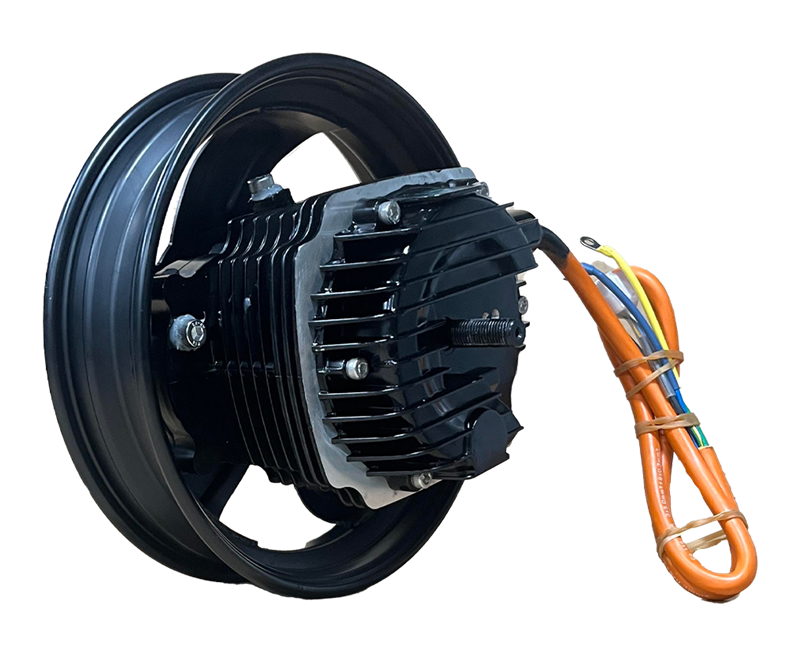

130 wheel core motor

Lingbo electronic motors cover phantom tile, mid-mounted, side-mounted, oil-cooled and other series, with a power of 2kW–23kW, suitable for super electric motorcycles, off-road, high-speed electric motorcycles and other scenarios. Using high-grade magnets and low-resistance windings, coupled with a proprietary electromagnetic solution, and deeply coordinated with the controller, it combines strong torque, high speed and low heat, providing efficient and surging power output for the entire vehicle.

Product advantages

Highly integrated design, extremely space-saving

The wheel-side drive has significant advantages, with quick start and response.

The direct-drive structure is silent and operates quietly.

Standard IP67 protection, no fear of harsh environments

Technical parameters
Size 130 stator
Working voltage 72V
Rated power 3500-4000W
Peak power 5500-5800W
Rated speed 4500-5000rpm
Peak torque 180-260N·m
Maximum efficiency 90%
Insulation level H
Sensor type Magnetoelectric encoder
Reduction ratio 6.75/8.58
maximum speed 80-100km/h
